SICUROBAT 1-Cell LiFePo4-Battery

High temperature resistant rechargeable batteries

LiFePo4 cells are distinguished by their high safety, as thermal runaway and membrane melting are excluded. The metal cylinder form ensures mechanical stability, and environmental friendliness is enhanced by avoiding heavy metals like cobalt. With smaller cells requiring over 50% less space, they are more cost-effective than NiMH batteries.

Technical Information

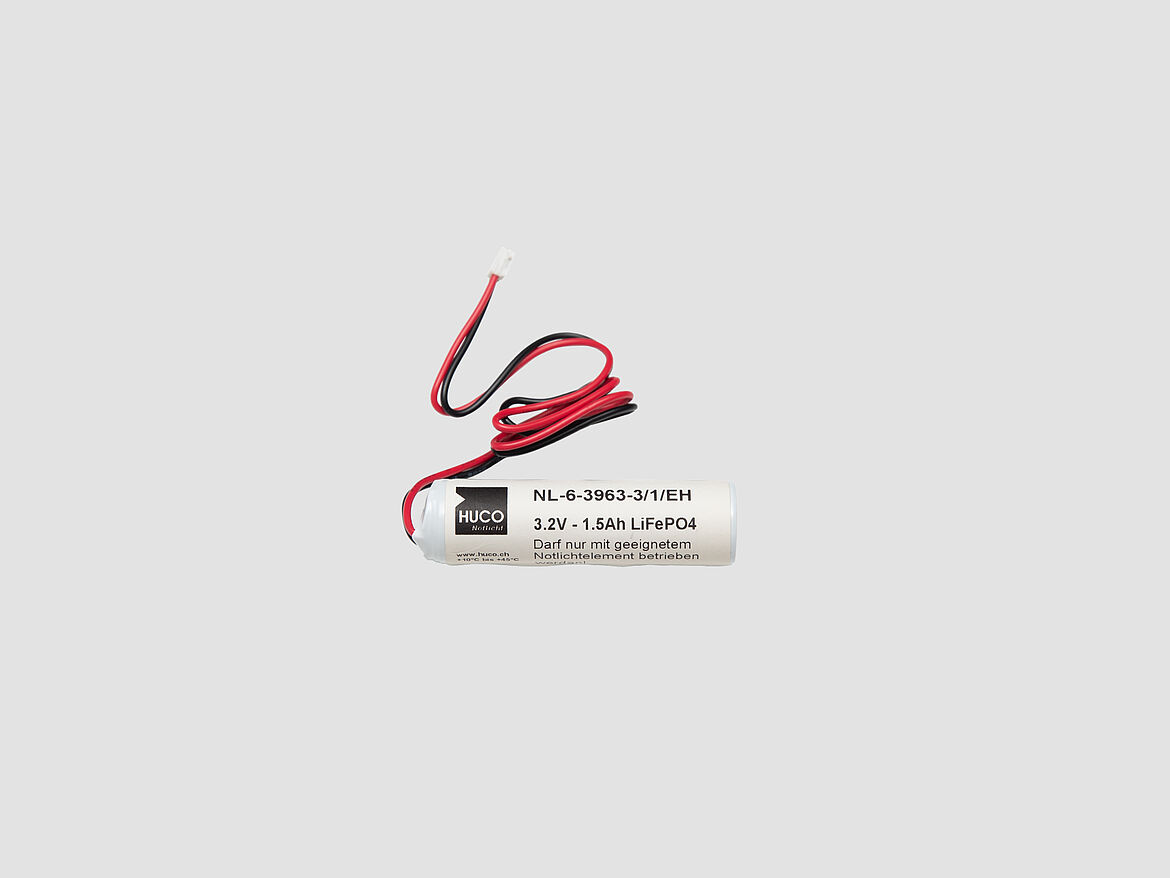

1-Cell Rod Batteries

Temperature: 5°C - 55°C
Cell Voltage: 3.2 V
Capacity: 1.5 Ah
Height: 19 mm
Width: 19 mm
Length: 68 mm
Weight: 45 g
Certification: CE
Cell Type: 18650
Charging Time: 24 h
Certifications: EN 62620 (Performance); EN 62133 (Safety)
Expected Lifespan: 6 years

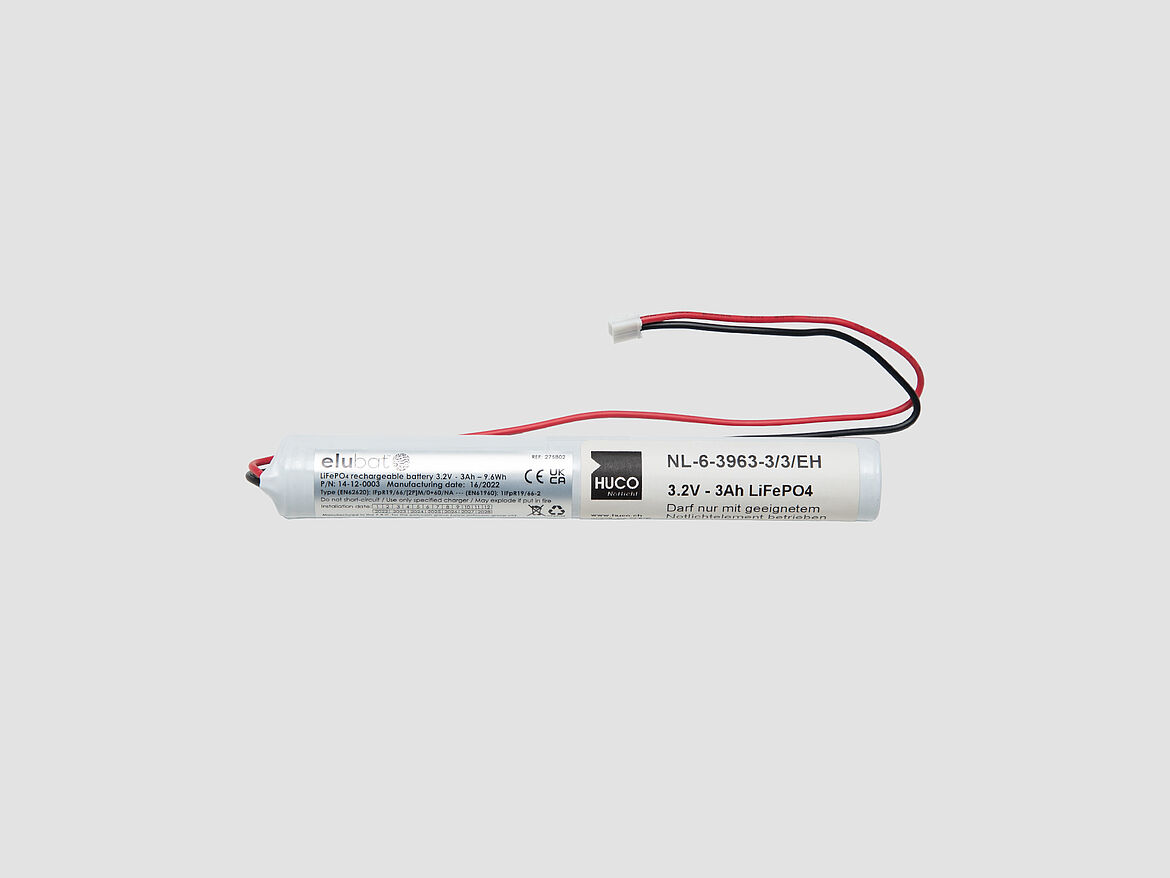

2-Cell Rod

Temperature: 5°C - 55°C
Cell Voltage: 3.2 V
Capacity: 3.0 Ah
Height: 19 mm
Width: 19 mm
Length: 135 mm
Weight: 90 g
Certification: CE
Cell Type: 18650
Charging Time: 24 h
Certifications: EN 62620 (Performance); EN 62133 (Safety)
Expected Lifespan: 6 years

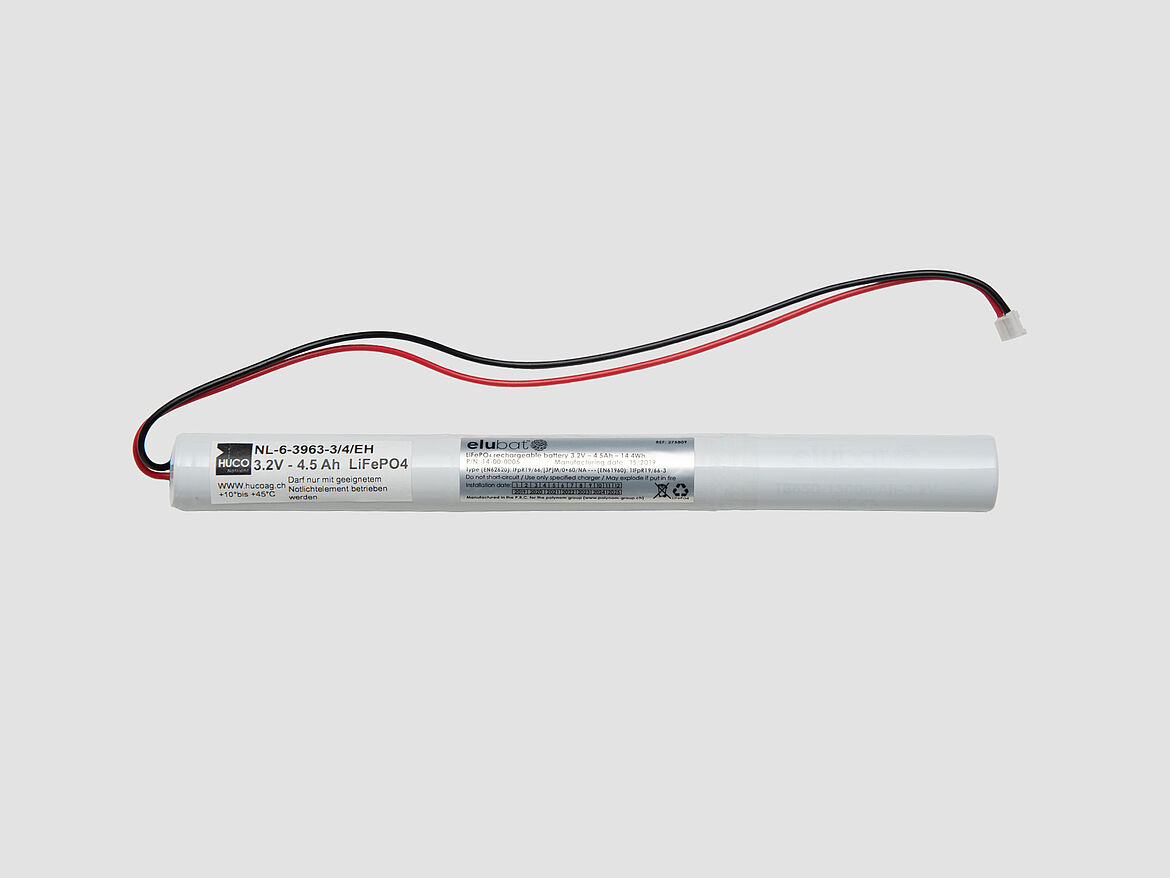

3-Cell Rod Batteries

Temperature: 5°C - 55°C
Cell Voltage: 3.2 V
Capacity: 4.5 Ah
Height: 19 mm
Width: 19 mm
Length: 200 mm
Weight: 130 g
Certification: CE
Cell Type: 18650
Charging Time: 24 h
Certifications: EN 62620 (Performance); EN 62133 (Safety)
Expected Lifespan: 6 years

Downloads

SICUROBAT Litihium Iron Phosphat Battery
