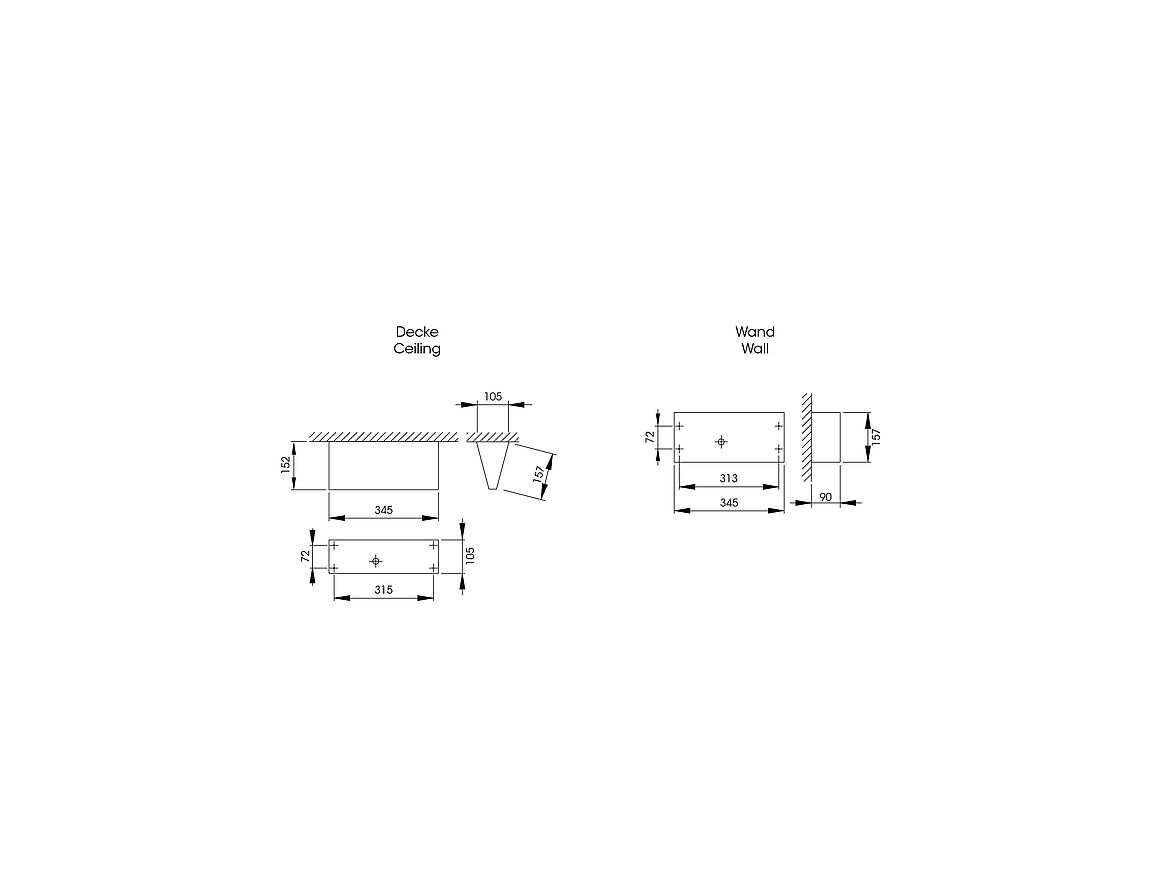

SICUROLUX-GN/GND is an escape sign luminaire in accordance with DIN EN 60598-1/-2-22 and DIN EN 1838. The frame is made of white galvanised metal and is equipped with glass-retaining clips and is particularly characterised by its practical design. The different versions of the escape sign luminaire allow mounting on walls (SICUROLUX-GN) and ceilings (SICUROLUX-GND). The accessories, consisting of pictograms, replacement glasses and a base plate for surface-mounted installation, make SICUROLUX-GN/GND versatile.
SICUROLUX-GN/GND
Material
Frame: White galvanised metal with glass-retaining clips
Glass: Opal acrylic glass
Luminaire details
Operating time: 3 h
Ambient temperature: 10-30°C
Lamp: 6 x 0.5 W LED incl.
Protection: IP 20 / Protection class I
Visibility range: 30 m EN 1838; 15 m SFPA
Power supply: 230 V / 50 Hz
Power consumption: Operating mode D = 12 VA; Operating mode B = 4 VA; Operating mode N = 12 VA
Operating modes
D = permanent operation [mains/emergency]
B = standby operation [emergency only]
N = mains operation [without emergency light unit]
Test facility
Light with or without fully automatic self-test. The fully automatic self-test serves to independently test the operability of the emergency light.
